Filters, Diplexers, Duplexers, Triplexers, Multiplexers etc



Standard & Custom designs



100kHz to 40GHz Frequency coverage



Filter Responses:

   Low Pass

   High Pass

   Bandpass

   Band Reject

   Diplexers

   Duplexers

   Triplexer

   Multiplexer



Implementations include

   BAW

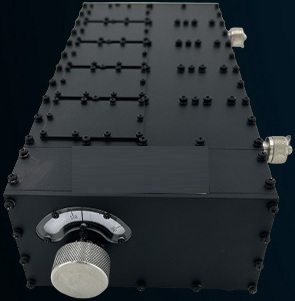

   Cavity
(incl Combline, Interdigital)
   Ceramic (incl discrete, mono-block)
   Crystal
   Helical
   LC
   LTCC
   MEMS
   SAW

   Suspended Substrate Stripline

   Waveguide

   Switched Filter Banks

   Tunable (Electrical / Digital)



Low-loss

High-Q

Sharp roll-off

Absorptive option

● 50Ω & 75Ω options

High Power handling option

Low-PIM option

Surface mount, drop-in & Connectorised

Weather-proof (IP rated) options



>> Triplexers for MoCA applicaions

>> Diplexers for CATV applications



>> Toko equivalents
